With a special body design, the product is very stable and durable. paper pile can be rotated automatically thanks to the efficient servo motor and reducer. It could improve the working efficiency of paper piling significantly with the help of enhanced hydraulic system.
Machine Series: SFZ
Paper Grammage:
Computer Screen: MCGS
1.Pile turner can be used for paper turning, blowing, foreign matter removal, drying, alignment and paper shaking. It is applicable to various kinds of gram weights and different kinds of paper.
2.Based on our years of experience and constant technological innovation, we could ensure the advancement and stability of the product. With a special body design, the product is very stable and durable.
3.paper pile can be rotated automatically thanks to the efficient servo motor and reducer. It could improve the working efficiency of paper piling significantly with the help of enhanced hydraulic system.
|
Model |
Unit |
FZ130A |
FZ150A |
FZ170A |
|
Features |
|
Turn over,Rotate,with air,Jogger |
Turn over,Rotate,with air,Jogger |
Turn over,Rotate,with air,Jogger |
|
Plate Width |
mm |
1450 |
1650 |
1850 |
|
Max.Paper Size |
mm |
1300×1000 |
1500×1150 |
1700×1300 |
|
Min.Paper Size |
mm |
500×400 |
600×500 |
600×500 |
|
Max.Layer Height (with two pallets) |
mm |
1600 |
1680 |
1680 |
|
Min.Layer Height (with two pallets) |
mm |
800 |
800 |
800 |
|
Max.Carrying Capacity |
kg |
1800 |
2300 |
3000 |
|
Gross Power |
kw |
18 |
30 |
40 |
|
Net Weight |
kg |
3900 |
4950 |
5500 |
|
Gross Weight |
kg |
4300 |
5450 |
6000 |
|

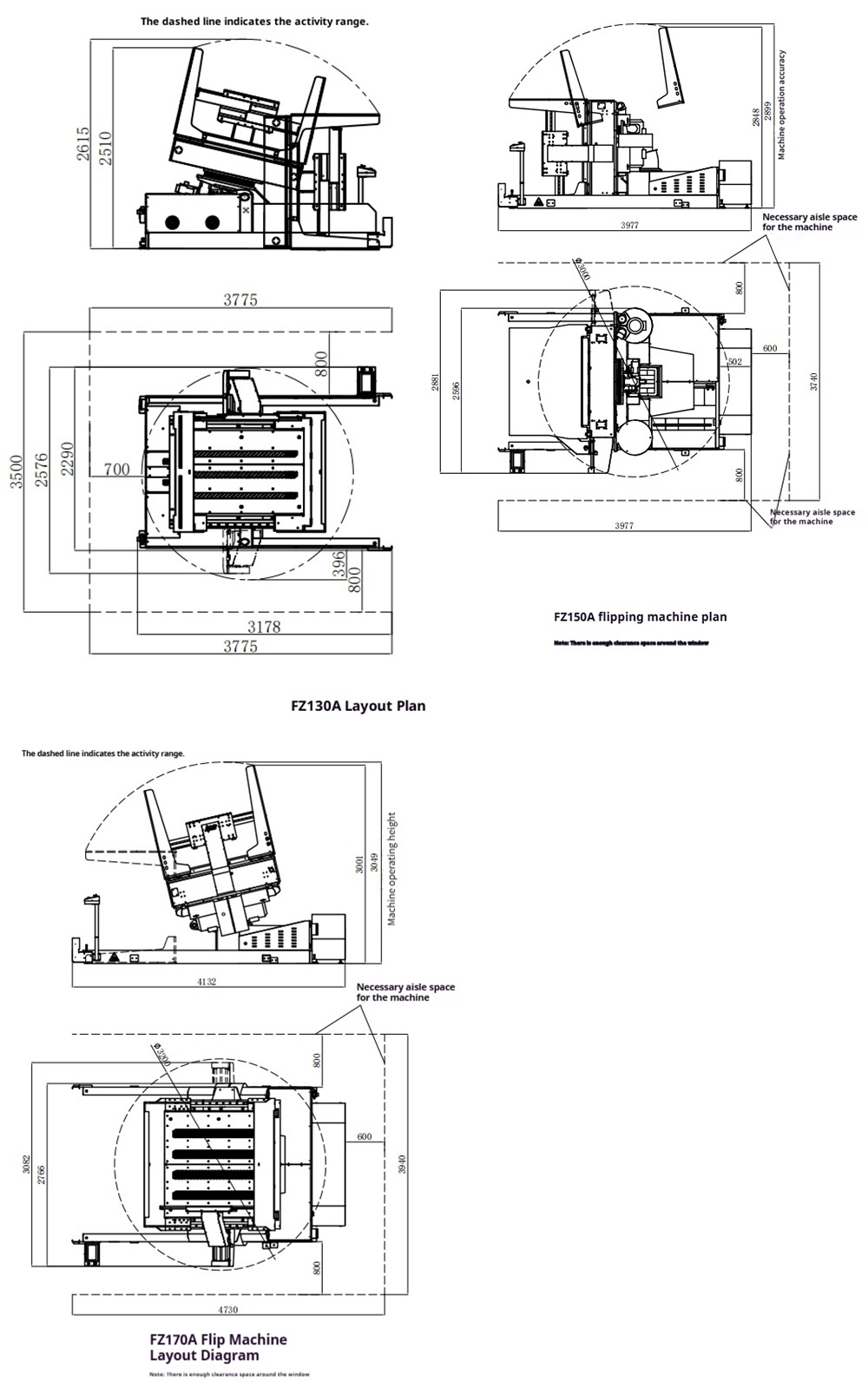

Machine Size(L×W×H) |
mm |
3180×2580×2510 |
3980×2880×2850 |
4140×3100×3000 |
|
Packing Size(L×W×H) |
mm |
3170×2500×2030 |
3550×2800×2110 |
3780×2930×2110 |
One key automatic work, no extra buttons, save time and labor.
Multi-specification paper parameter settings, conversion parameters convenient efficiency. Once set up, life-long use
Reduction servo gear structure, stable rotation and high precision
One outlet with a branded air pump, high pressure, high flow rate, refusing one pump with multiple outlets.
High-strength, high-thickness welded body for visible strength.
Ultra-flat, hardened, fully-automatic backing surface for durability and savings
Leveraging top-tier brands to ensure long-term industrial durability.
|
No |
Name |
Brand, specification & model |
|
1 |
Servo driver |
Inovannce |
|
2 |
Vibration Motor |
AMP/OLI-WOLONG |
|
3 |
PLC |
Inovannce |
|
4 |
Air switch |
TE |
|
5 |
AC contactor |
TE |
|
6 |
Button |
TE |
|
7 |
Photoelectric sensor |
FOTEK |
|
8 |
Frequency Converter |
Inovannce |
|
9 |
Switch power |
TE |
|
10 |
Power switch |
CANSEN |
|
11 |
Miniature Relay |
TE |
|
12 |
Hydraulic Block |
WAISN |
|
13 |
Drive motor |
BOSCH/LICHUAN |
|
14 |
connector |
Weidmuller |
|
15 |
Touch screen |
MCGS |
